Iceberg Climatized Cabinets

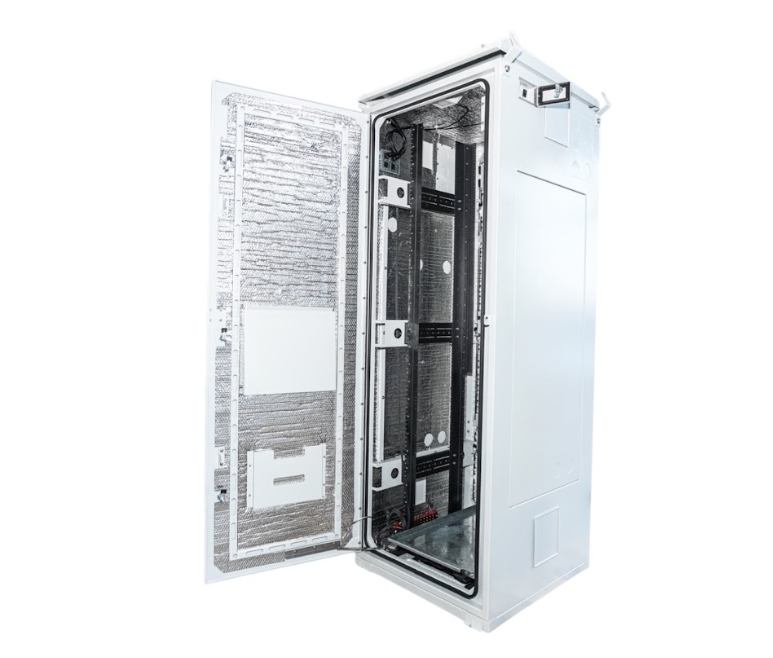

1 Bay 48 RU Cabinet
High-density 48RU outdoor enclosure with a space-saving slim footprint.
Build America, Buy America Certified.
The 1 Bay 48 Ru Cabinet is engineered for urban and space-constrained telecom deployments requiring maximum vertical rack space. Built with a powder coated steel, it achieves an IP66 protection level. Integrated with Dantherm HVAC systems up to 24,000 BTU.

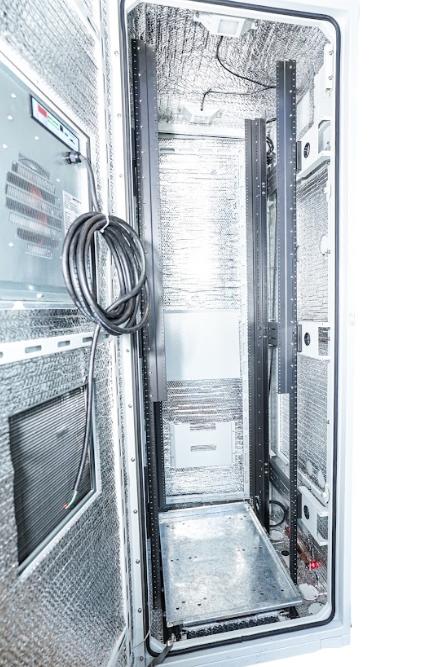

- High-Density 48RU Rack Capacity
- Dimensions: 95"H x 30"W x 34"D
- NEMA 4 Rated & IP66 Dust/Water Sealing
- SolarShield™ Heat Reduction Technology
- 3-Point Anti-Theft Security Locking

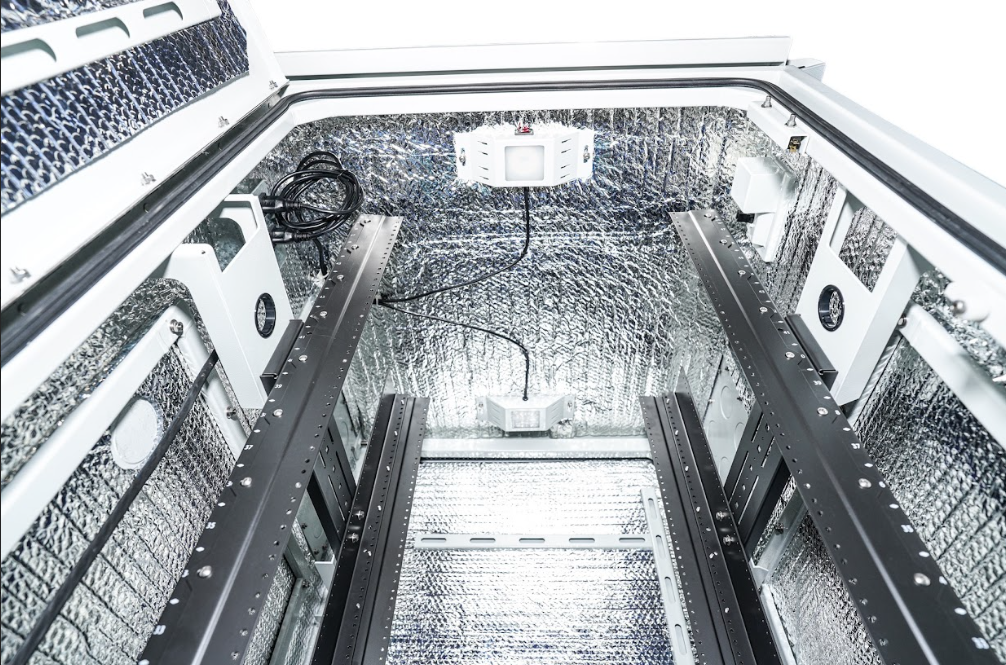

- Supports all equipment 23" or 19"
- Battery Tray, Fixed or Sliding, and
Battery Compartment Available upon
request
- 10-Position Master Ground Bar Standard
- Base, side, and top cable
entry,
All 2.5” knockouts
- Radio & BBU Support for 3G, 4G, and 5G
- Generator Plug (30A or 50A options)
Integrated Technologies

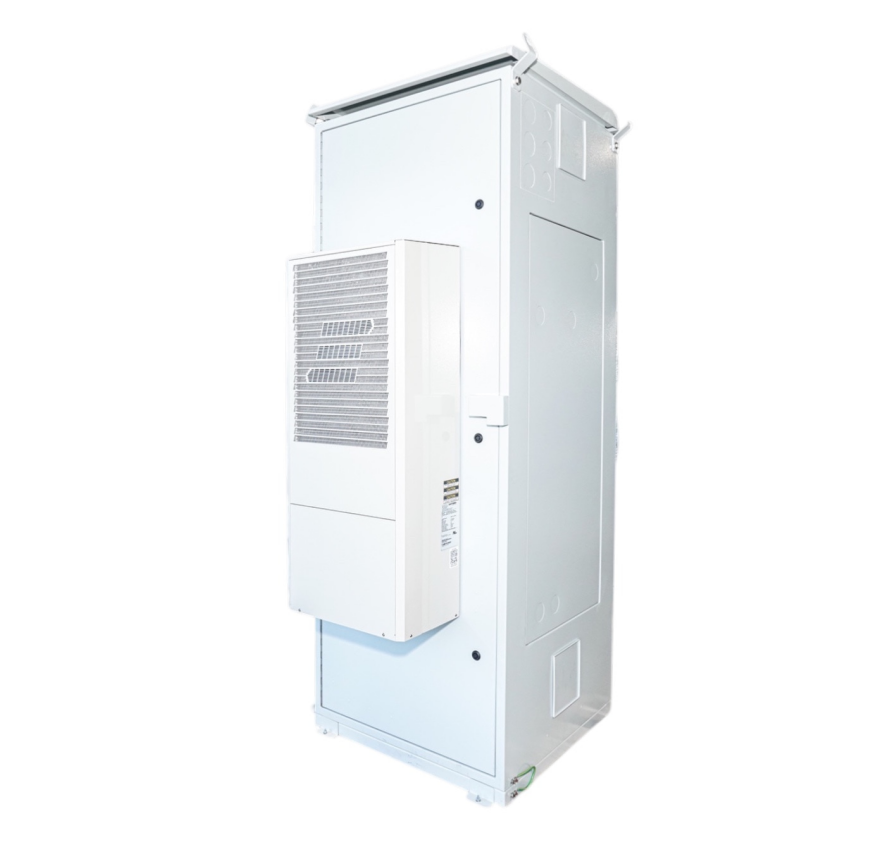

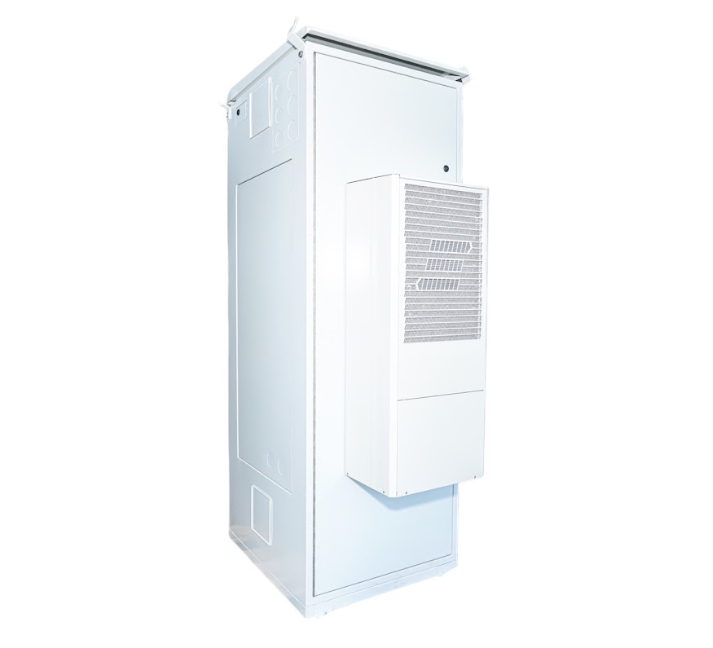

Thermal Management
Dantherm HVAC units (2k–24k BTU) in AC/-48VDC.
Back door mounted. Heat Exchanger options available.
Power
Supports all DC equipment 23” and 19”
Includes 30A/50A Gen Plug and Square D Load Centers.
Cable Entry
2.5” knockouts in Base, Sides, and Top for cable entry.
Phone: 737-308-6646
Email: nlee@icebergcabinet.com
