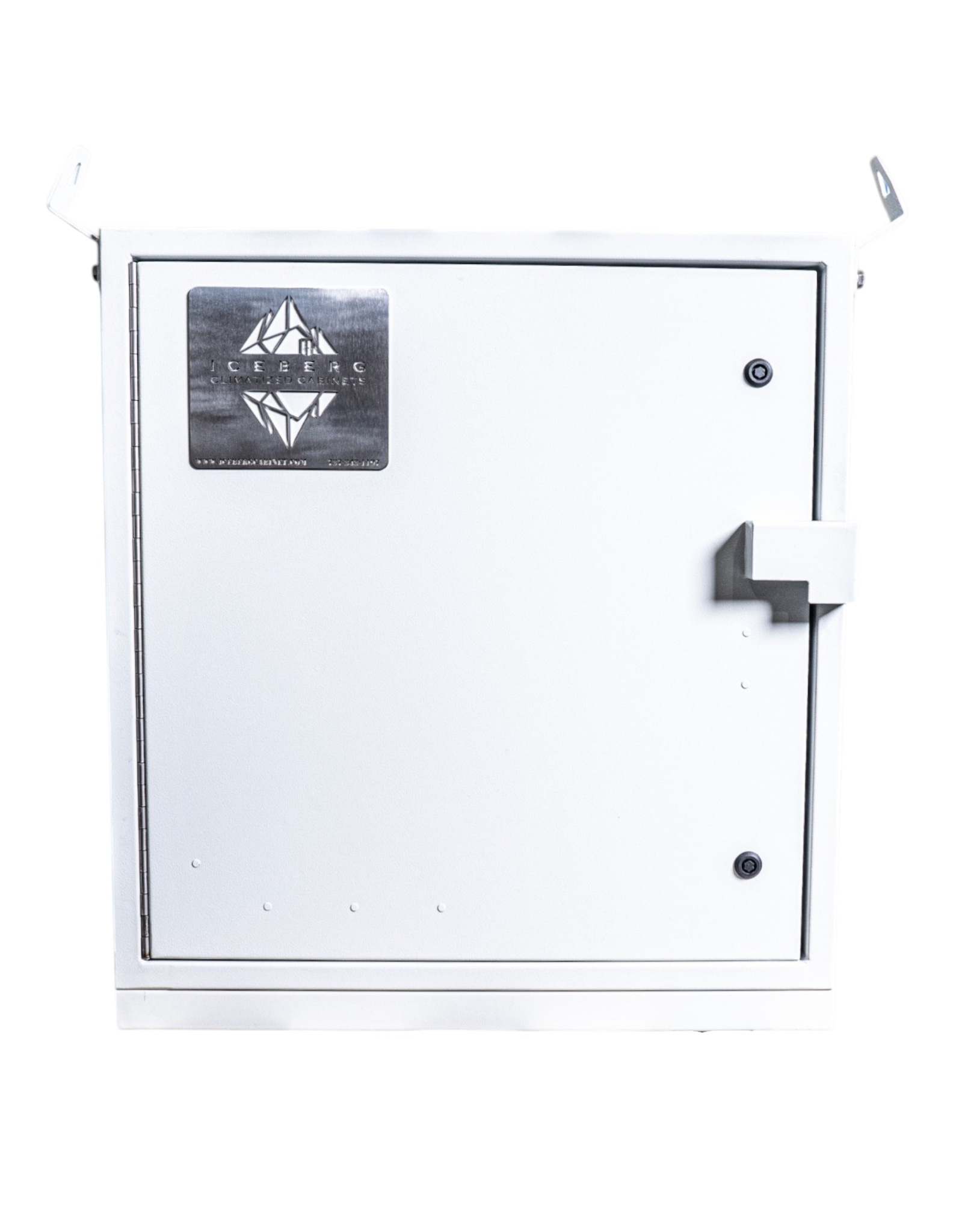

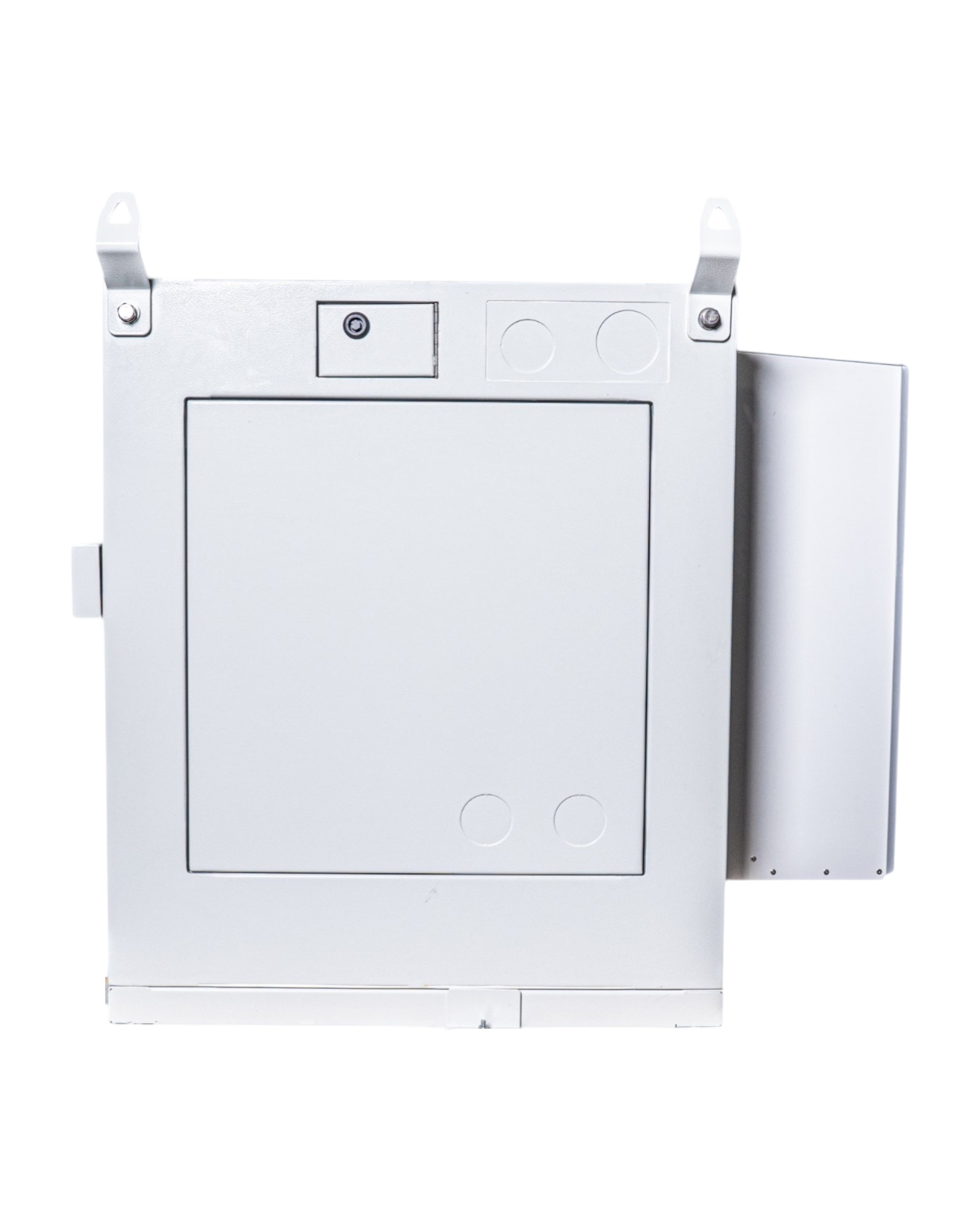

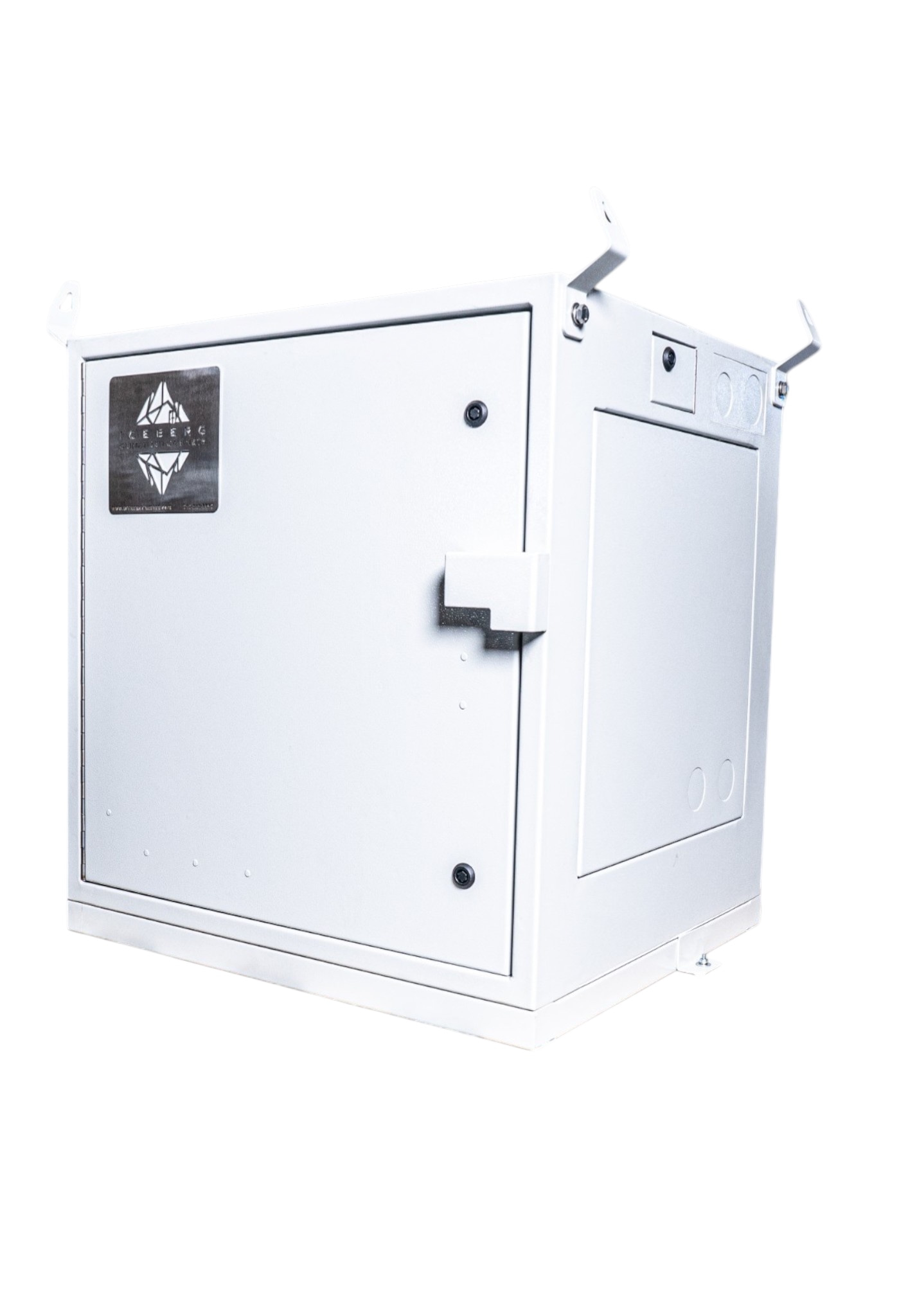

Professional-Grade Outdoor Telecom & Networking Enclosure

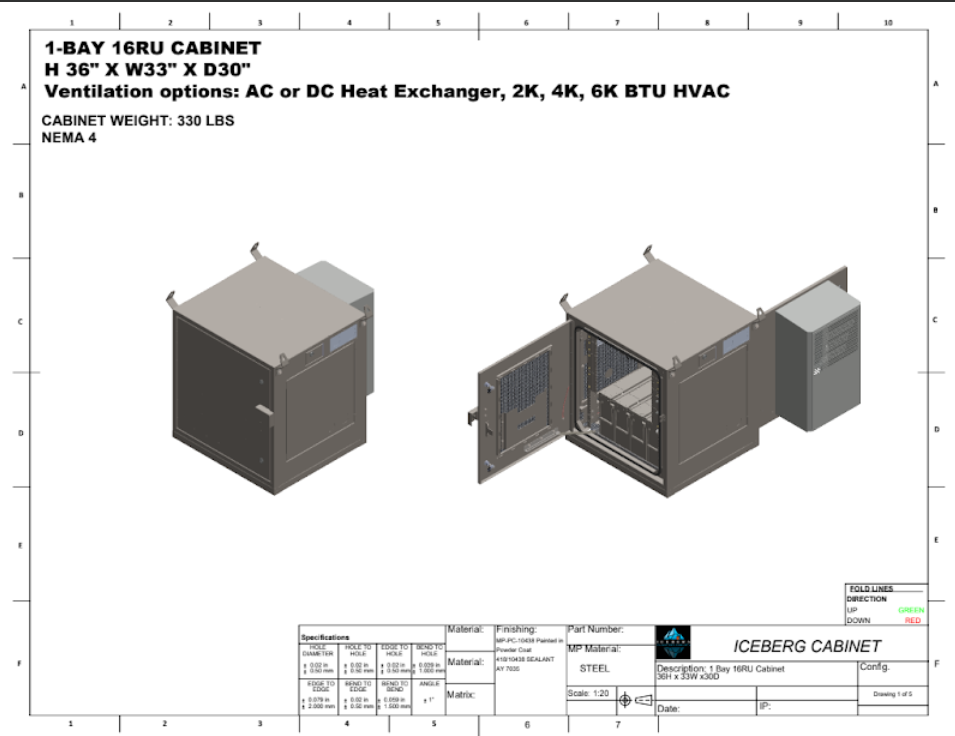

36"H × 33"W × 30"D
16RU Single Bay
330 LBS
NEMA 4 / IP66 Certified
Powered by Dantherm thermal solutions. Available in AC and -48VDC configurations. Choose from Heat Exchanger or 2,000–6,000 BTU HVAC units for climate control.

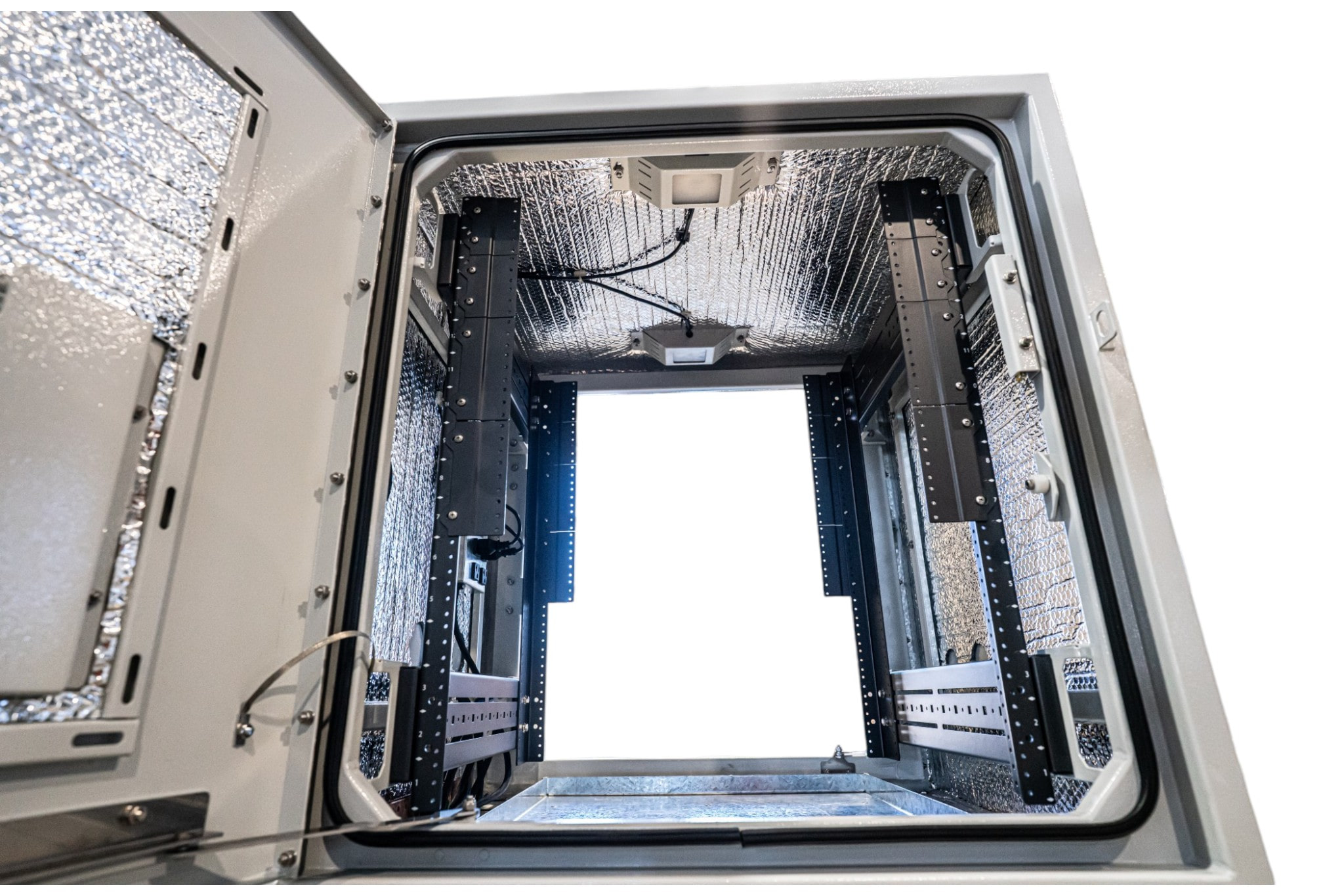

Features 19" and 23" flippable rack posts. 19" adapters are included as standard. Flexible depth adjustment for various hardware requirements.
Engineered by Iceberg Climatized Cabinets, these enclosures offer durable mechanical and environmental protection. Available in aluminum or steel, the compact structure supports quick installation and achieves a rigorous IP66 protection level.
Configurable solutions for telecom, broadband, and edge network applications.

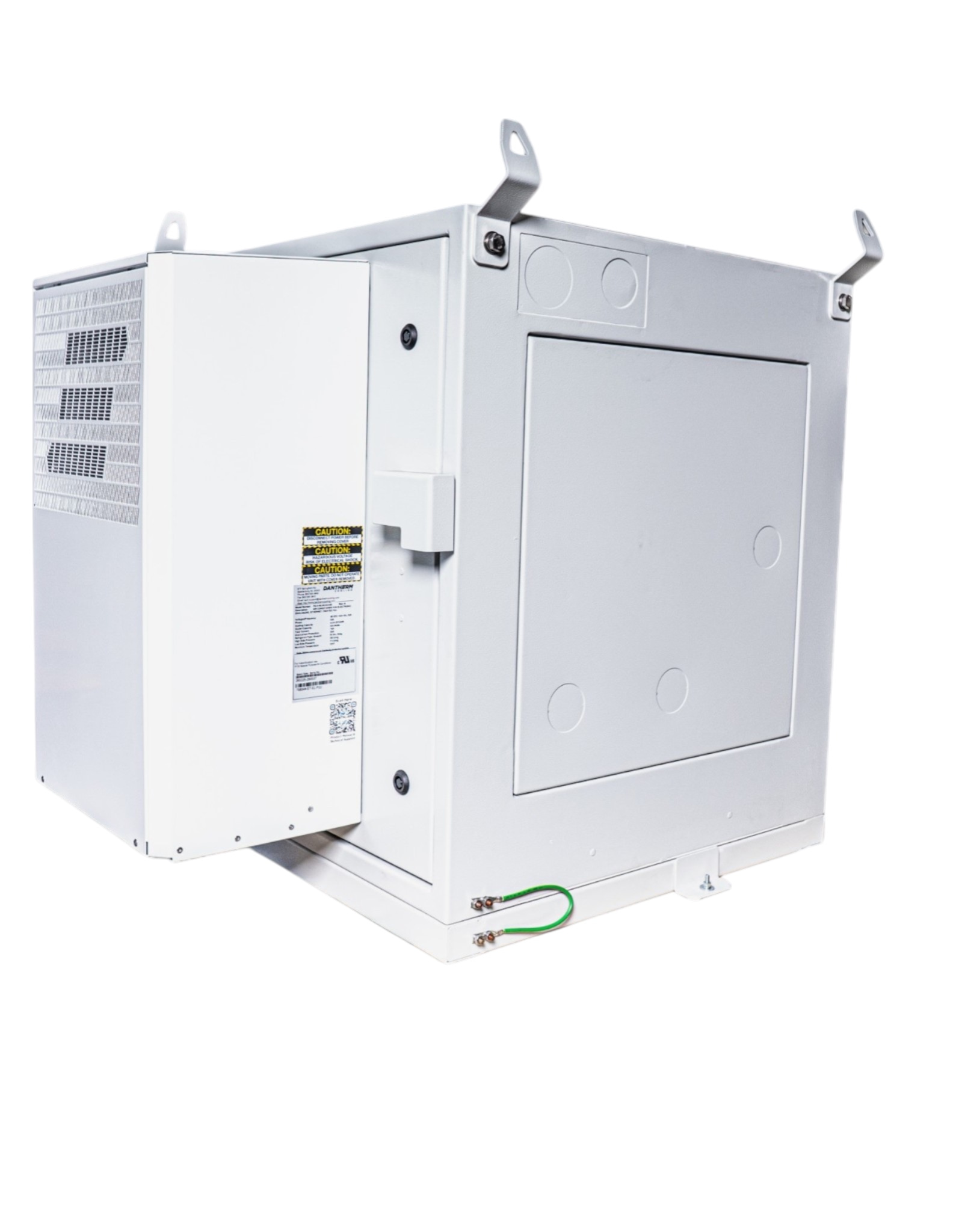

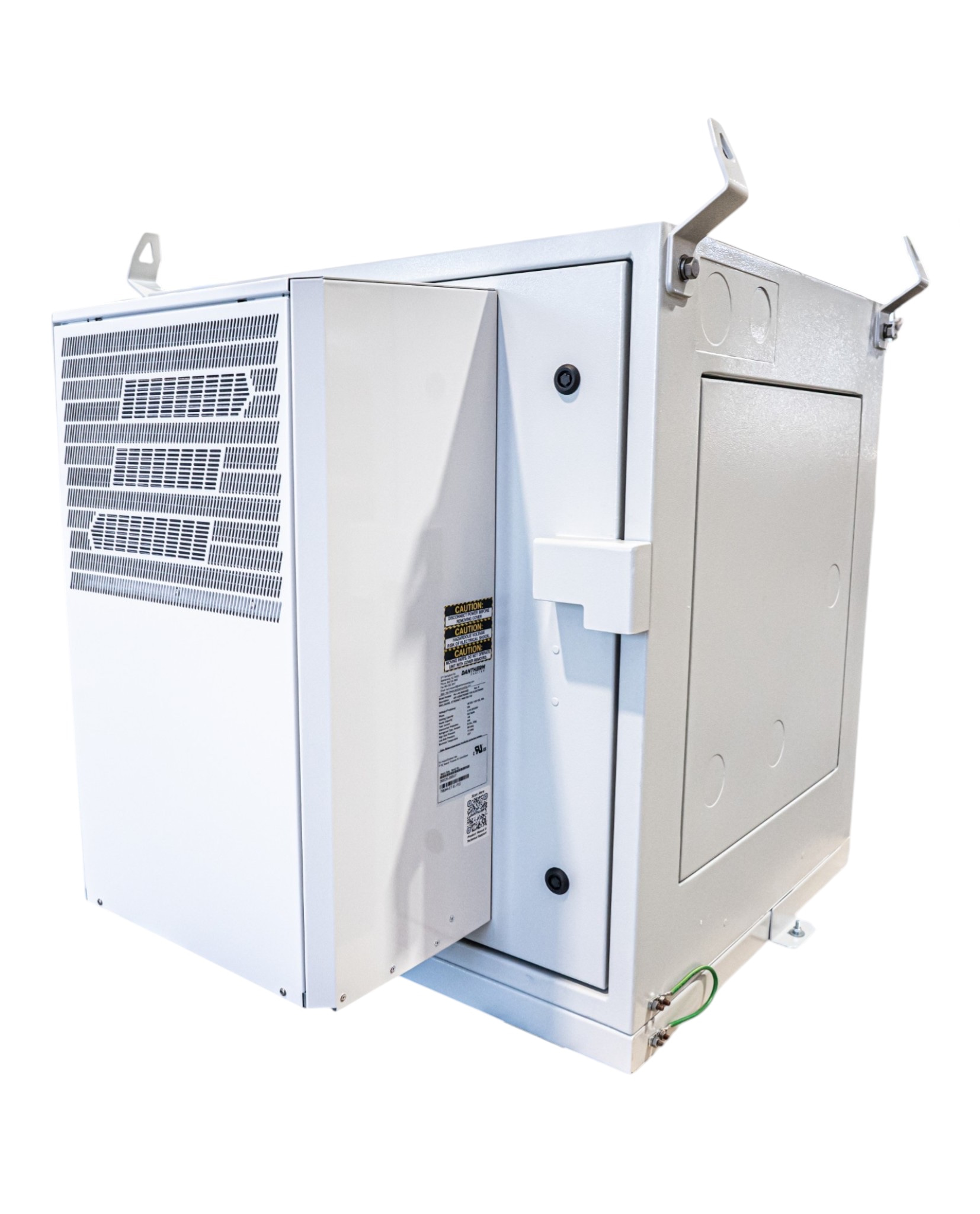

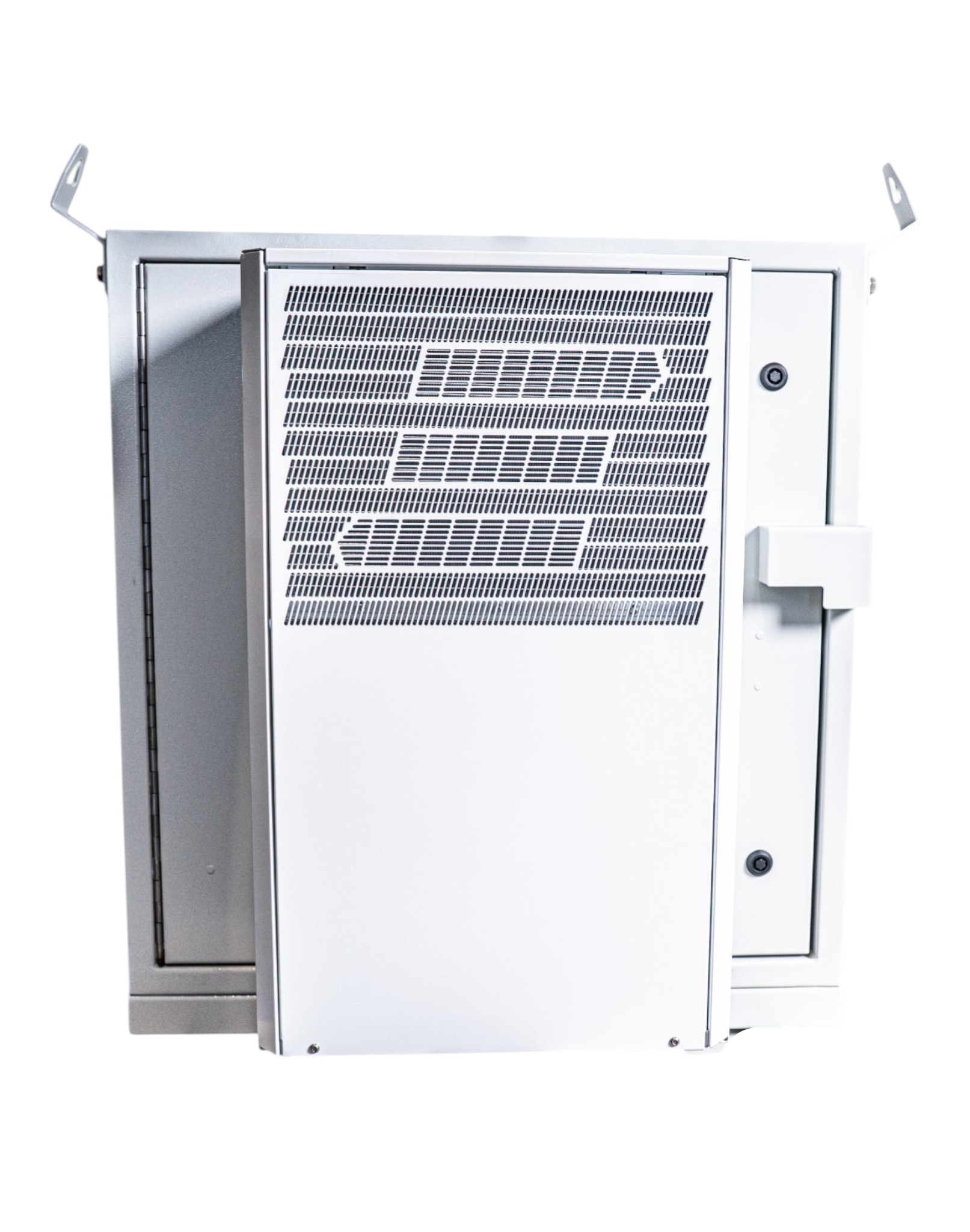

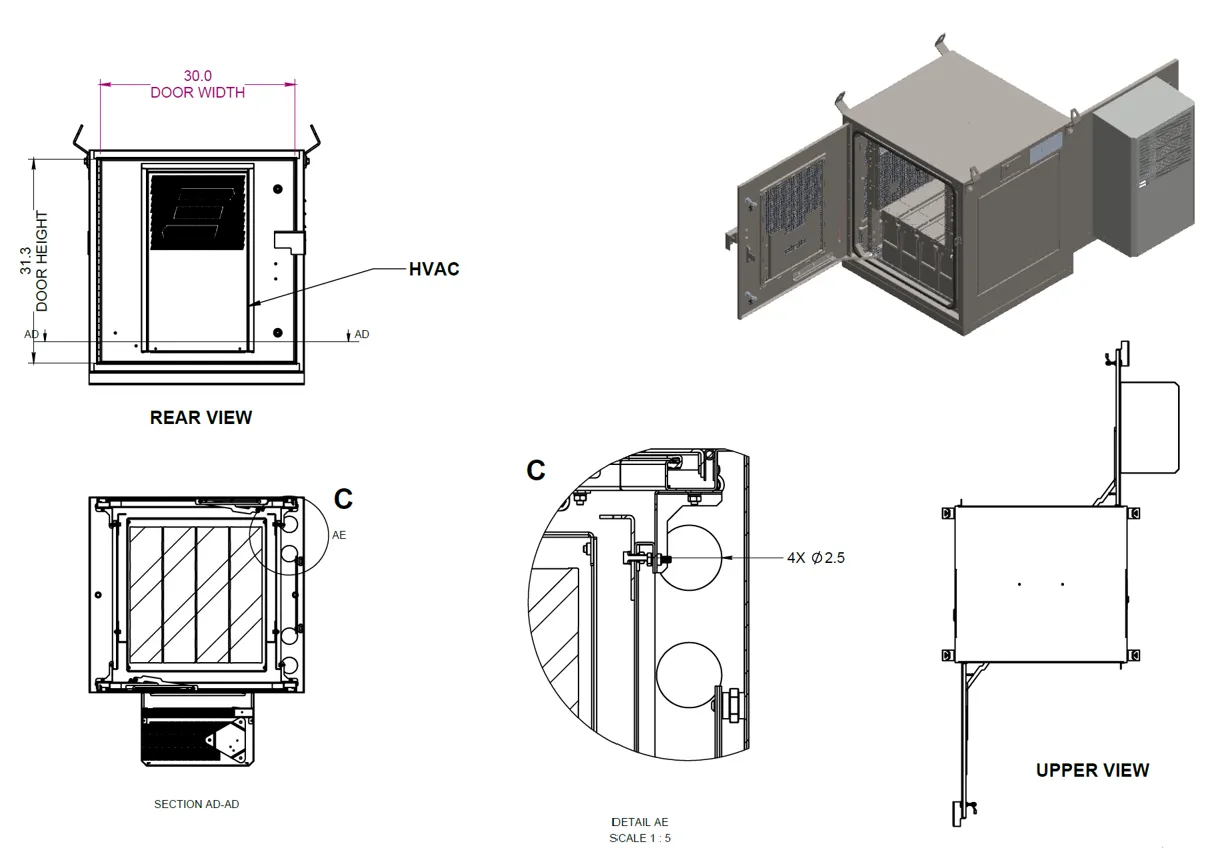

Primary ModelsDantherm HVAC units (2k-24k BTU) in AC/-48VDC. Back door mounted. Heat Exchanger options available.
Supports all DC equipment 23” and 19” Includes 30A/50A Gen Plug and Square D Load Centers.

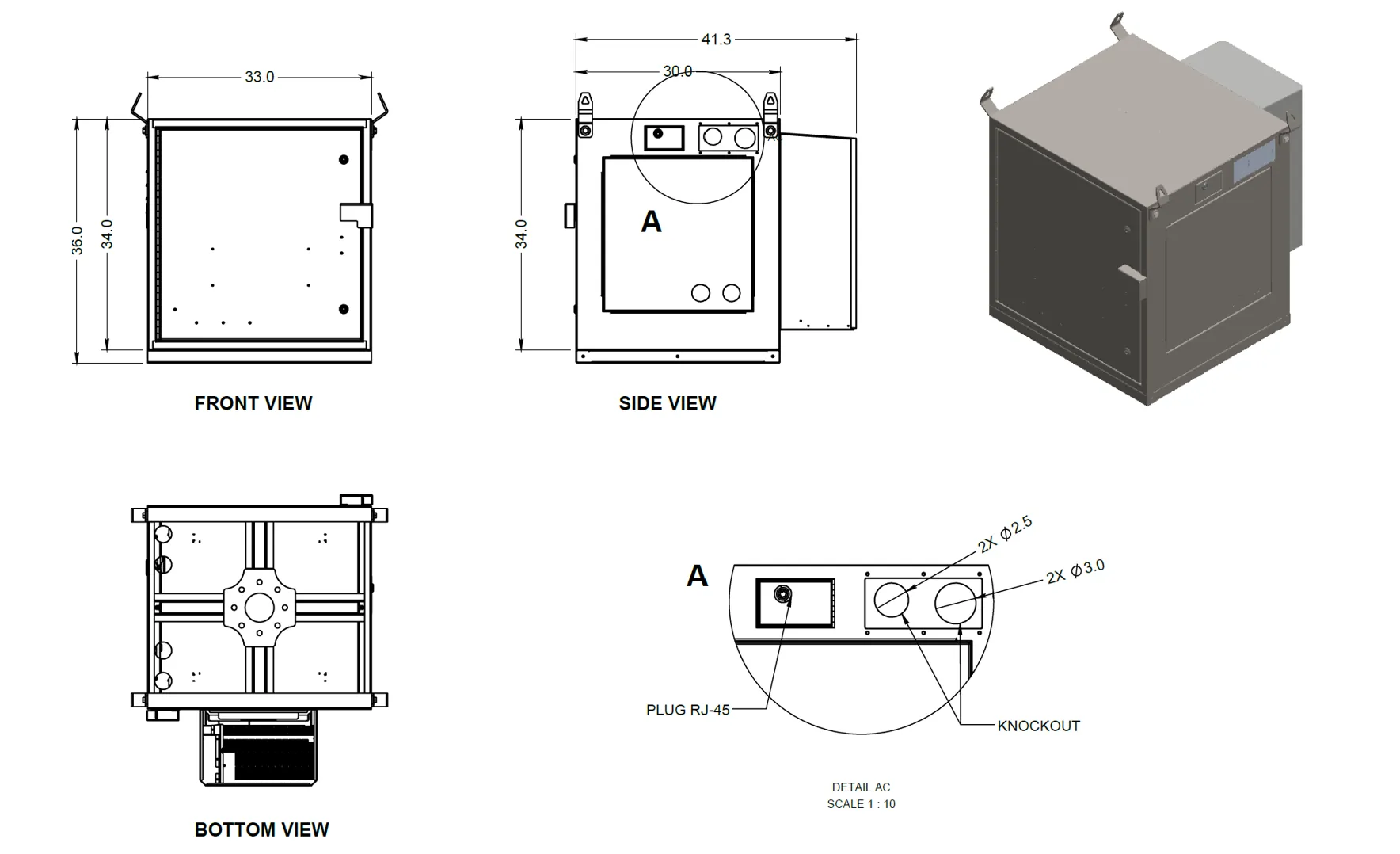

2.5” knockouts in Base, Sides, and Top for cable entry.
